Total cooling capacity min (1)(E) kW	2,19
Total cooling capacity med (1)(E) kW	2,54
Total cooling capacity max (1)(E) kW	2,91
Sensible cooling capacity min (1)(E) kW	1,71
Sensible cooling capacity med (1)(E) kW	2,00
Sensible cooling capacity max (1)(E) kW	2,33
FCEER class	D
Water flow min (1) l/h	380
Water flow med (1) l/h	450
Water flow max (1) l/h	510
Water pressure drop min (1)(E) kPa	23
Water pressure drop med (1)(E) kPa	30
Water pressure drop max (1)(E) kPa	37
Heating capacity min (2)(E) kW	2,42
Heating capacity med (2)(E) kW	2,77
Heating capacity max (2)(E) kW	3,23
FCCOP class	D
Water flow min (2) l/h	420
Water flow med (2) l/h	490
Water flow max (2) l/h	560
Water pressure drop min (2)(E) kPa	23
Water pressure drop med (2)(E) kPa	30
Water pressure drop max (2)(E) kPa	37
Rated air flow min m³/h	331
Rated air flow med m³/h	339
Rated air flow max m³/h	484
Power input min (E) W	29
Power input med (E) W	32
Power input max (E) W	35
Total sound power level min (3)(E) dB(A)	35
Total sound power level med (3)(E) dB(A)	42
Total sound power level max (3)(E) dB(A)	48
(1) Water temperature 7°C/12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity) according to EN1397	2021
(2) Water temperature 45°C / 40°C, air temperature 20°C
(3) Sound power measured according to standards ISO 3741 and ISO 3742
(E) EUROVENT certified data
Power supply 230-1-50 (V-ph-Hz)

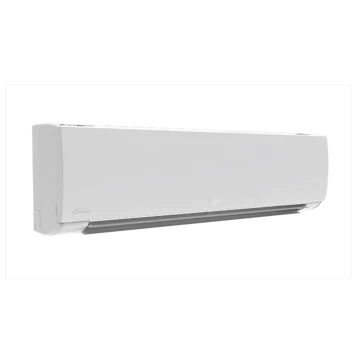

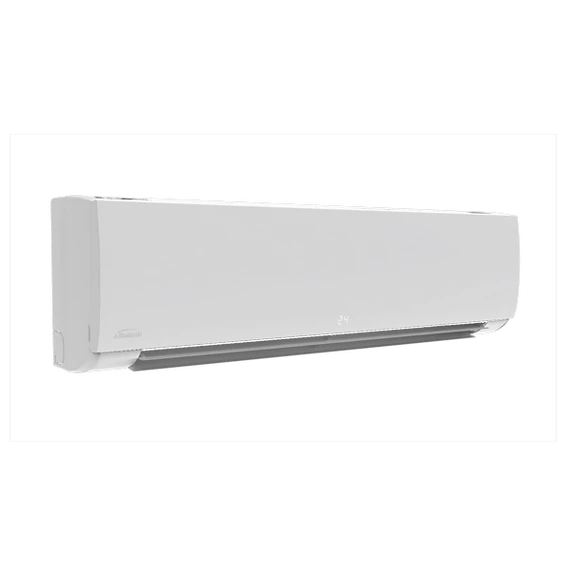

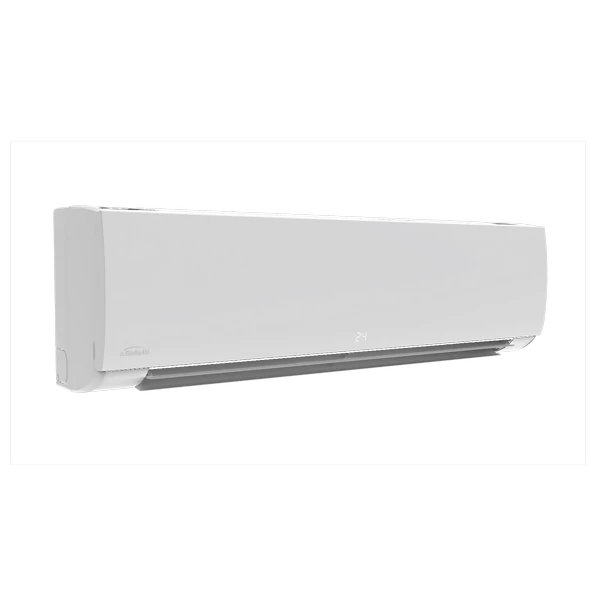

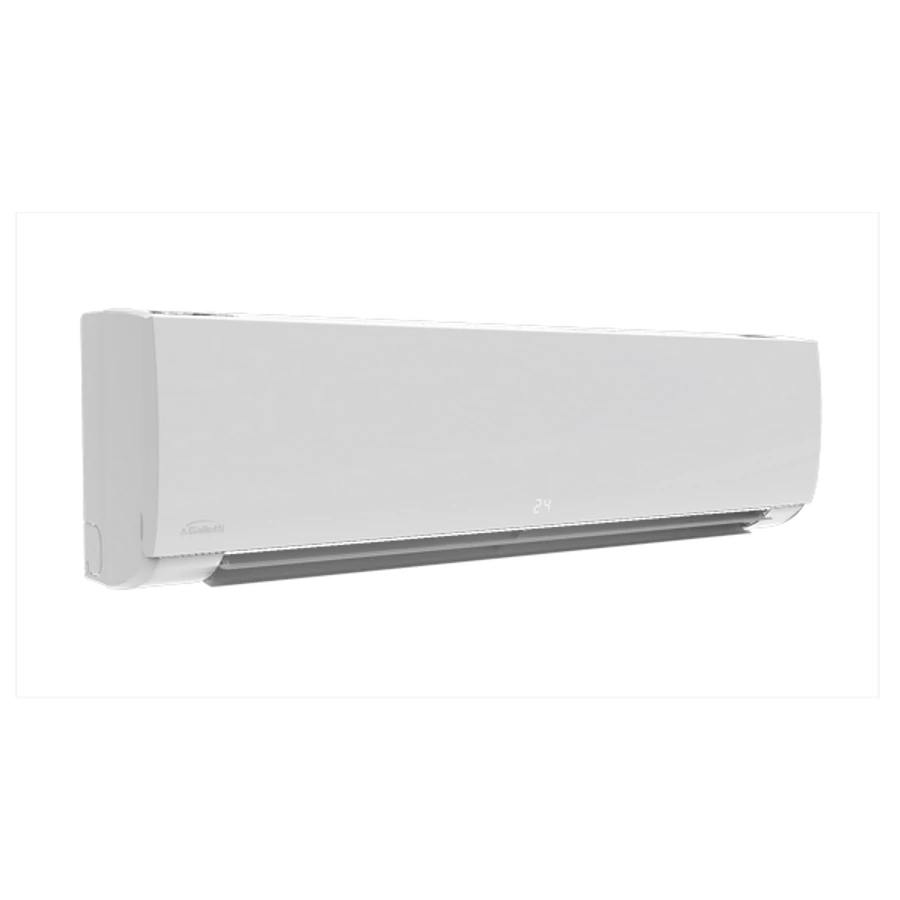

Galletti GHW 23 magasfali fan coil beépített 3 járatú szeleppel
