Total cooling capacity min (1)(E) kW	1,80
Total cooling capacity med (1)(E) kW	2,04
Total cooling capacity max (1)(E) kW	2,30
Sensible cooling capacity min (1)(E) kW	1,38
Sensible cooling capacity med (1)(E) kW	1,55
Sensible cooling capacity max (1)(E) kW	1,74
FCEER class	A
Water flow min (1) l/h	360
Water flow med (1) l/h	400
Water flow max (1) l/h	460
Water pressure drop min (1)(E) kPa	18
Water pressure drop med (1)(E) kPa	22
Water pressure drop max (1)(E) kPa	29
Heating capacity min (2)(E) kW	1,70
Heating capacity med (2)(E) kW	2,00
Heating capacity max (2)(E) kW	2,73
FCCOP class	B
Water flow min (2) l/h	380
Water flow med (2) l/h	450
Water flow max (2) l/h	490
Water pressure drop min (2)(E) kPa	18
Water pressure drop med (2)(E) kPa	22
Water pressure drop max (2)(E) kPa	29
Rated air flow min m³/h	356
Rated air flow med m³/h	412
Rated air flow max m³/h	462
Power input min (E) W	9
Power input med (E) W	10
Power input max (E) W	11
Total sound power level min (3)(E) dB(A)	39
Total sound power level med (3)(E) dB(A)	40
Total sound power level max (3)(E) dB(A)	42
(1) Water temperature 7°C/12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity) according to EN1397	2021
(2) Water temperature 45°C / 40°C, air temperature 20°C
(3) Sound power measured according to standards ISO 3741 and ISO 3742
(E) EUROVENT certified data
Power supply 230-1-50 (V-ph-Hz)

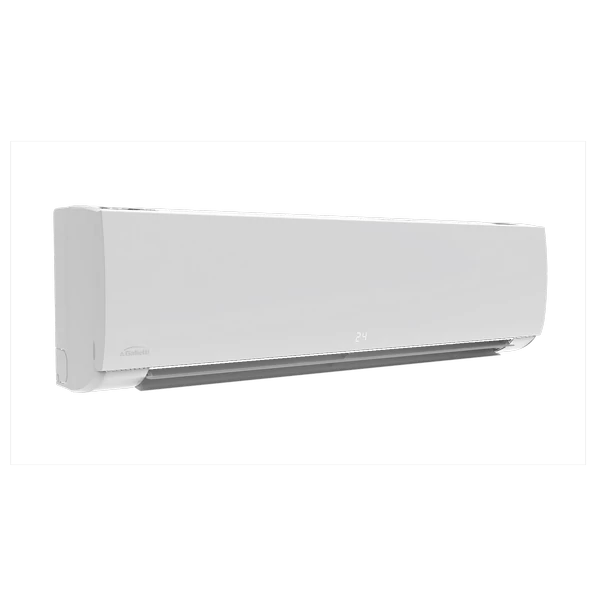

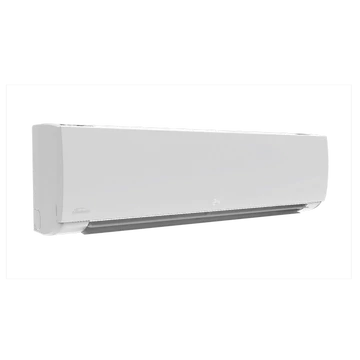

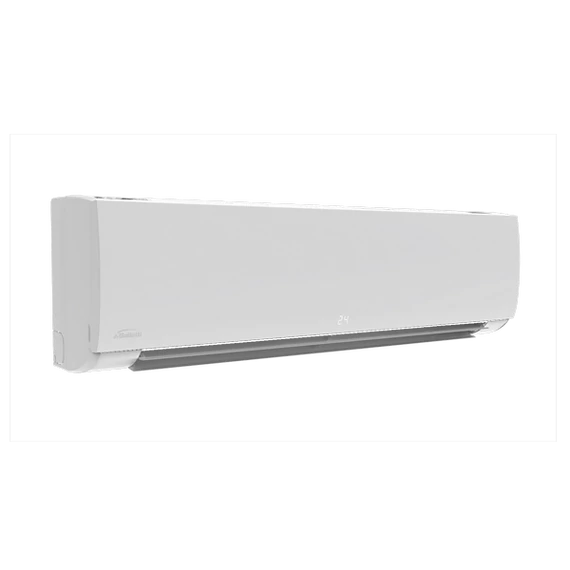

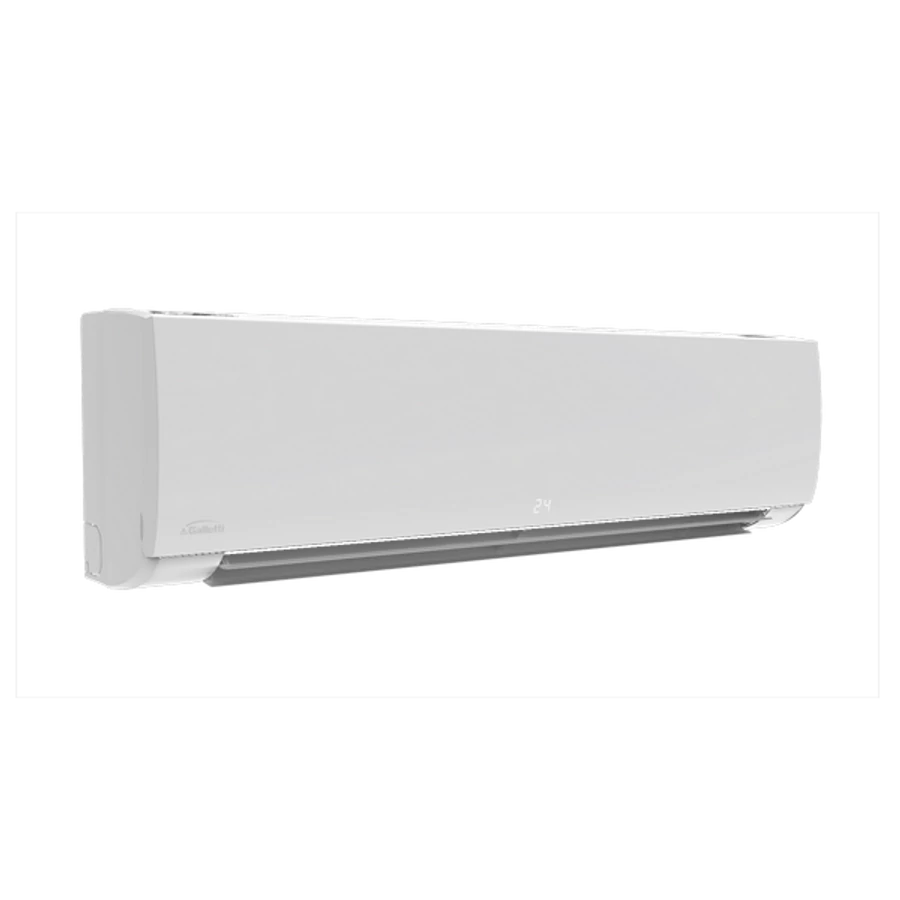

Galletti GHW 13 magasfali fan coil beépített 3 járatú szeleppel
